KRIMESITE IMAGER Direct View Kit with Black Talon


By connecting the patented Black Talon Stabilizer to the KRIMESITE™ IMAGER, a steady platform is created for close-up viewing and photography. The Black Talon is comprised of a lightweight support structure engineered to provide the correct lens-to-subject distance for viewing and photography. The built-in precision laser engraved sliding photo evidence scale is easily positioned into or out of the field-of-view, allowing the photograph to be scaled 1-to-1 at a later time, as required. Dual 4-watt shortwave UV lamps (included) are attached to the fully adjustable support/swing arms, providing the necessary angle of incidence required for maximum contrast. The BTS100 Black Talon Stabilizer has been optimized to easily receive the Krimesite Imager. Attachment is accomplished by removing the pistol grip, properly positioning the Talon, and reattaching the grip to the Imager. No tools are required.

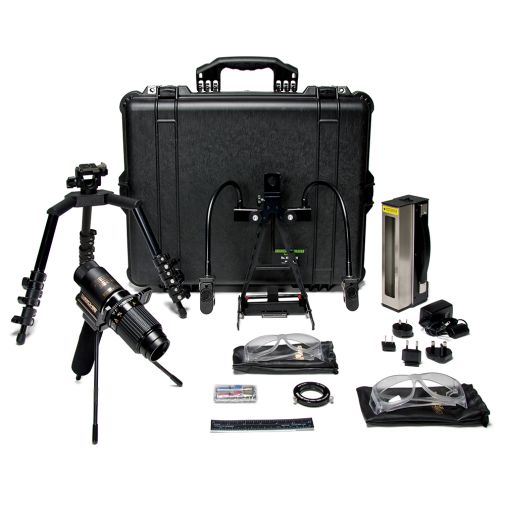

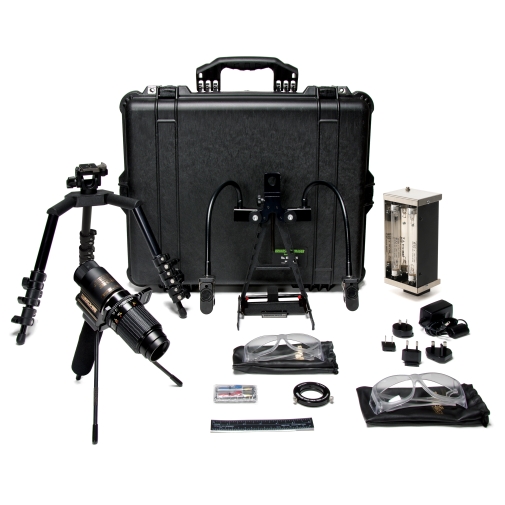

KSS60TALON Contents:

1- KSS60 KRIMESITE™ IMAGER w/KSS100b 60mm UV lens; Adjustable Focus Eyepiece w/Rubber eyecup; Dual Filter Slide Assembly (Luminol/ Visible and UV); Gen II Image Intensifier; Laser Pointer; 6” (15.2cm) Wrist Lanyard

1- CR123 Lithium Battery

12- AA Alkaline Batteries

1- KRIMESITE™ IMAGER Steady Rest w/Removable Pistol Grip

1- BTS100 Black Talon Stabilizer (U.S. Patent No. 7,050,715) w/2 CUV100TS 4-watt battery operated UV Lamps (254nm)

2- Precision Laser Engraved Scales, English and metric

1- 782ADCST 8-Watt Shortwave UV (254nm) Light with Tripod Mount

1- KSS9200 SIRCHPOD® Copy Stand

1- 58mm Camera Adapter

2- 797GV UV Protective Spectacles

1- EPS30KS Photo Scales, 6” (15cm) white on black, 10 pk.

1- KSS684 Pkg. Arrow Designators (96/pk)

1- Operator’s Manual

1- Pelican® 1550 IP67 rated Carry Case, Custom- fitted, moisture resistant, 20.66” (52.5cm) L x 17.20” (43.7cm) W x 8.40” (21.3cm) D

Product Restrictions

  • Export Restriction
