The New Standard in Officer Safety
Officer safety is imperative when handling unknown substances in the field. Detect the smallest amount of fentanyl (0.5%) in mixed substances compared to other handheld scanners with NARKsafe® DrugDetect-F1. With this sensitive spectrometer, your team can presumptively test for fentanyl and methamphetamine without direct contact with the suspected drugs. Identify trace quantities of methamphetamine at 1.0% concentration or greater and fentanyl at 0.5% concentration or greater in mixtures through plastic bags or plastic wrap. Within seconds, a positive result will be determined by the indicating LED light if fentanyl or methamphetamine is present.
Safely screen substances with our contactless detection technology. Contact us for more information and learn how you can better protect your team with NARKsafe DrugDetect-F1.
Touchless Technology
The DrugDetect-F1 scanner uses photoemission/reflection spectroscopy to detect fentanyl and methamphetamine through transparent, polyethylene plastic bags or plastic wrap. The target substance is illuminated at specific wavelengths of ultraviolet light to activate the relevant target molecules which are then analyzed by sensor’s electronics. No contact with the substance is required, but proper PPE should be worn when handling any suspected drugs. Please refer to your department for proper handling guidelines.
Note: The measurement should be done with the substance contained within a polyethylene plastic bag for officer safety. Do not use with evidence bags made with polystyrene as they are not transparent to the UV light being used by this device. See below for additional disclaimers.*
Easy-to-use Interface

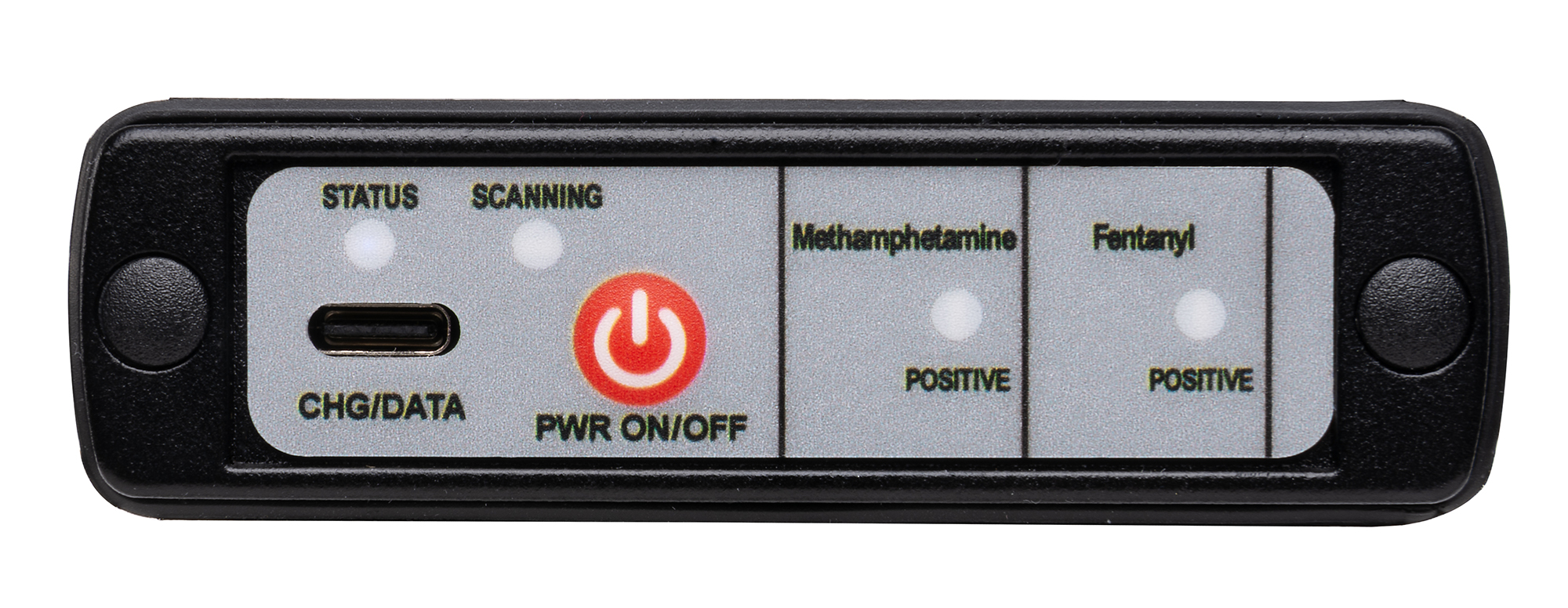

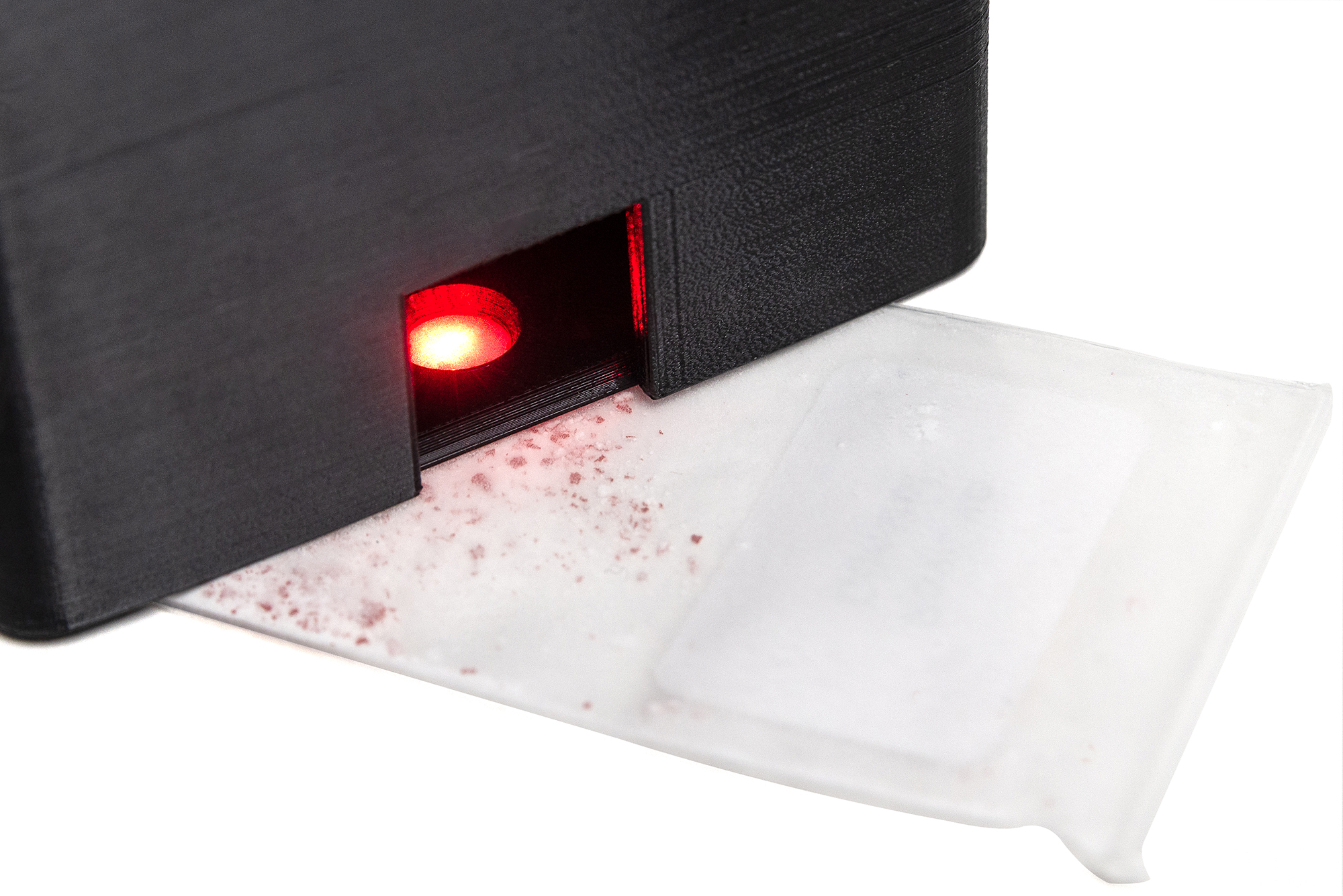

Attach the light shield to the DrugDetect-F1. After turning on the device, place the aperture of the light shield over the powdered sample. Press the green button to activate the measurement cycle. Within seconds the sensor will provide a positive or negative result. To access and store data from screenings, use the software on the provided USB drive.

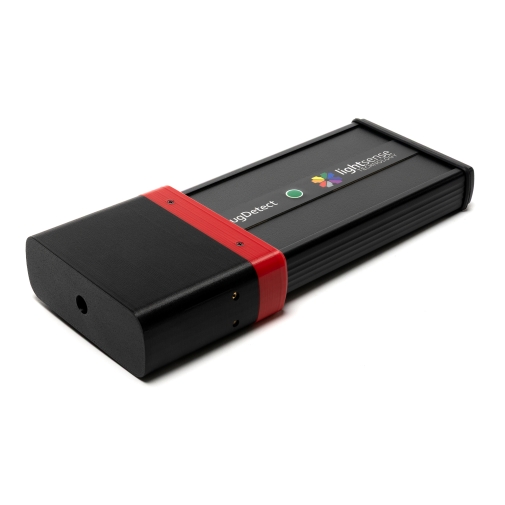

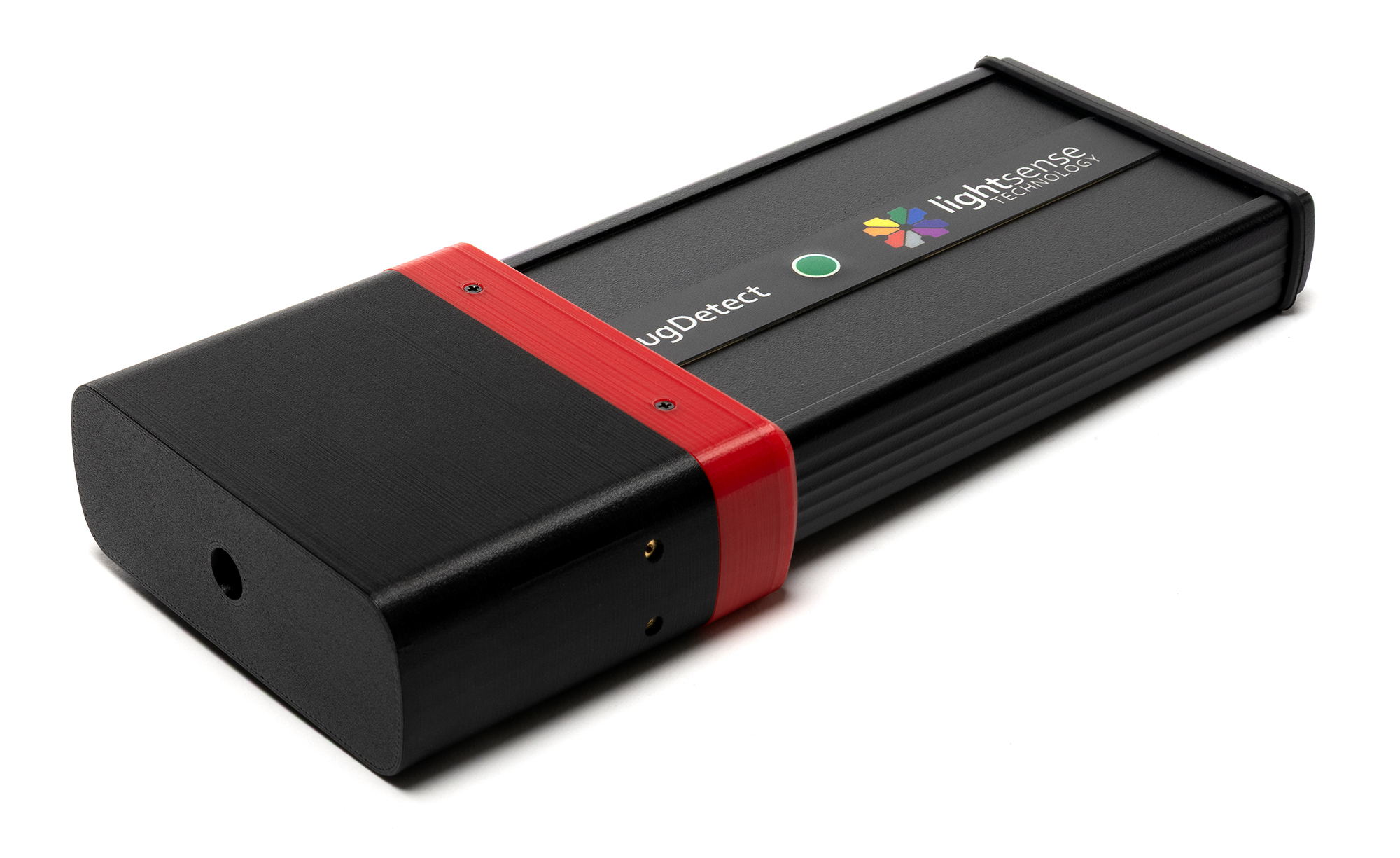

Compact, Durable Design
This point-and-shoot device is the size of a smartphone for convenience and easier mobility. It comes with a heavy duty, carrying case which provides additional protection for being out in the field.
*Disclaimers: Do not use DrugDetect-F1 to test substances with any type of currency or paper products.
Mucinex, Ibuprofen, Aspartame and Diphenhydramine yield false positives for methamphetamine.

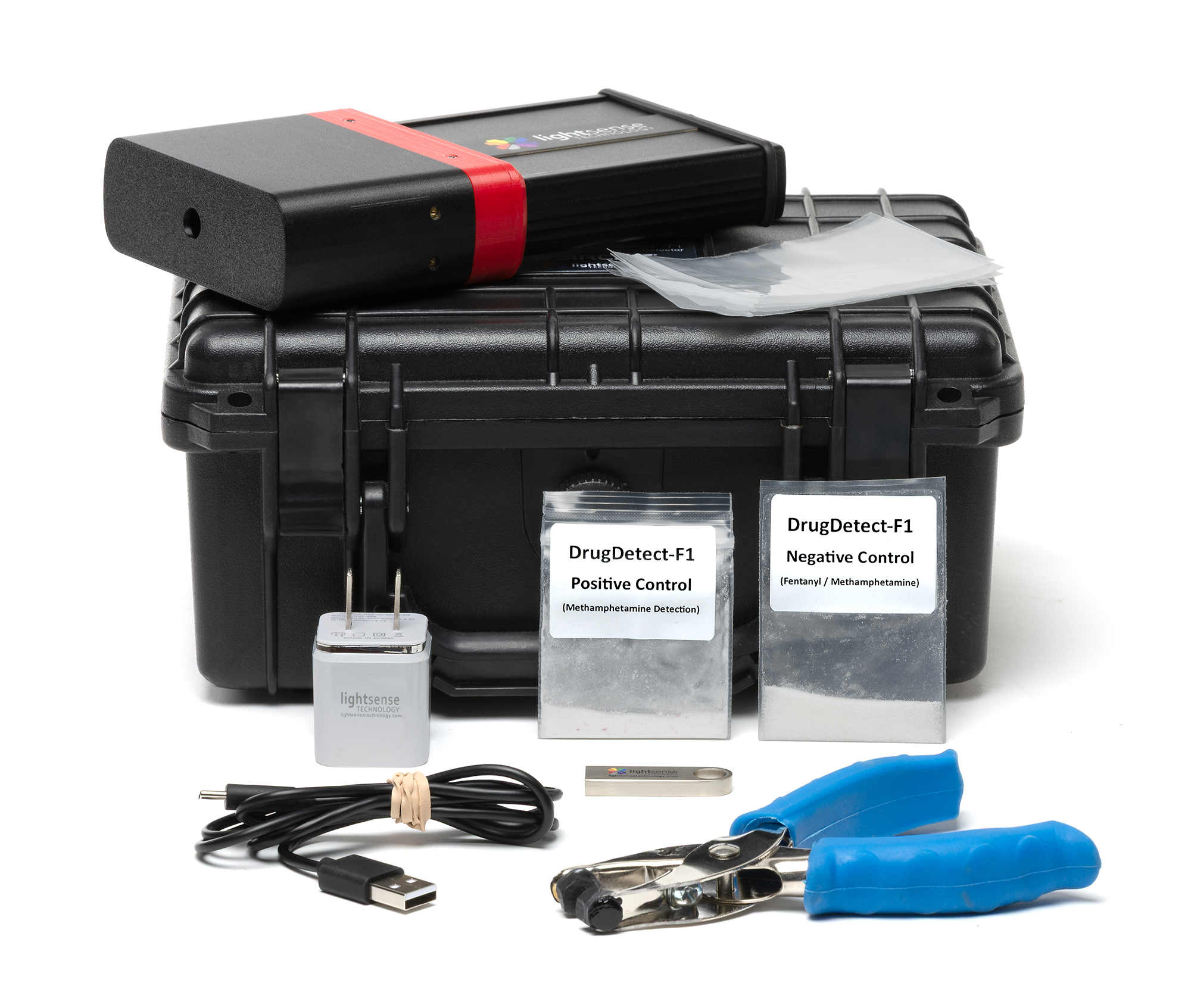

Kit Contents:
1- Hard carrying case
1- DrugDetect-F1 detector unit
1- Black light shield

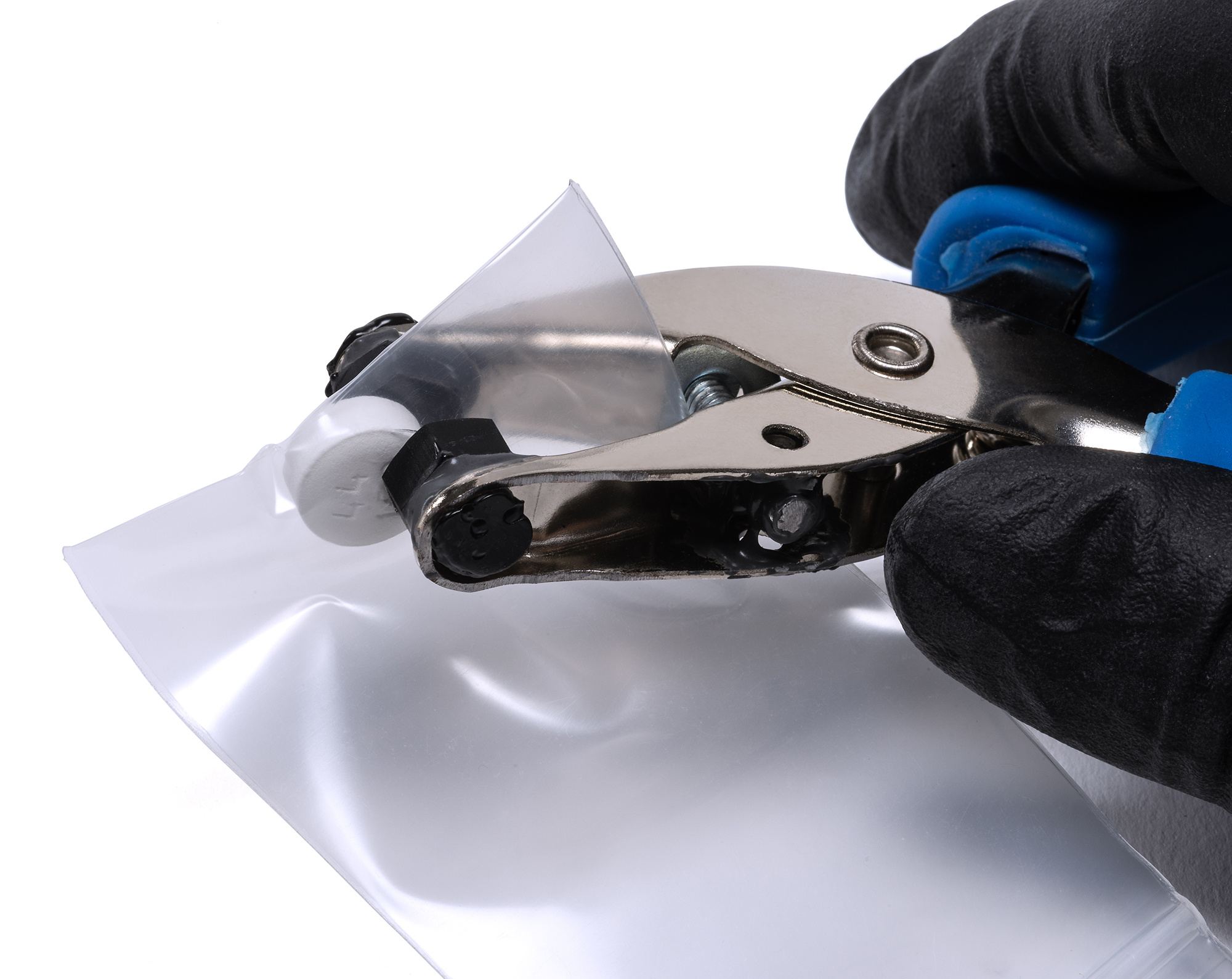

1- Pill crusher
1- USB flash drive
1- USB Wall Charger w/ USB-C to USB-A cable
1- Test reference sample for a positive methamphetamine signal: (Pseudoephedrine)
1- Test reference sample for a no-detection signal: cane sugar
Technical & Optical Specifications:
| Substances detected | Powdered and crystalline methamphetamine or pseudoephedrine and fentanyl w/without adulterants |
| Maximum sensitivity | >1% for methamphetamine; >0.5% for fentanyl in the 0.33” (8.4 mm) aperature in the light shield |
| Environmental | -4º F to 140º F (-20ºC to +60ºC), non-condensing |
| Operating distance | 2.0 inches (5.1 cm) – set by light shield |
| Operating wavelength | 250 nm to 600 nm |
| Detection method | UV photoemission/reflection spectroscopy |
| Scan area indicator | Light shield provides the correct distance to substance. 0.33” aperature defines the active scan area. |
| Photon collection area | 0.086 in2 (0.55 cm2) |
Mechanical Specs:
- Size: 1” (H) x 3.25” (W) x 6.7” (L) (2.5 cm x 8.2 cm x 17 cm)
- Unit weight: 16 oz. (0.454 kg)
- Protective Case: 4.3” (H) X 7.5” (W) X 9.1” (L) (10.9cm X 19.1cm X 23.1cm)
- Total weight in case: 3.25 pounds (1.5kg)
Electrical Specs:
- Battery life: 120 days with unit off; 10 hours scanning with full charge
- Power source: Li-ion rechargeable battery
- Programming interface: USB-C, female
- Scan switch: Membrane switch on top panel
Results are presumptive, and should be verified by an approved analytical laboratory.
Please note the following regarding results:
Unreliable:
- Paper (primarily colored)
- Money, including coins
False positive, methamphetamine channel:
- Mucinex
- Ibuprofen
False positive, fentanyl channel:
- Oxycodone (which, if in large quantities, is according to PCSD itself a reason for arrest)
Note: Always use proper PPE when handling potentially hazardous unknown substances.
For Testing Powders Only! Not for use on Psychedelics.
The results of this device are merely presumptive. All test results must be confirmed by an approved analytical laboratory!
Presumptive identification is generally recognized within our legal system as a component of probable cause. There is no drug identification system presently in use which completely eliminates the occurrence of false positives and false negatives.
View the full list of known false positives here: https://www.sirchie.com/drugdetect-f1-substances-tested
For more information about NARKsafe® DrugDetect-F1 click the "Request for Information" button above, call us at 800.356.7311, or contact Ethan Roby at eroby@sirchie.com
