Cyanoacrylate Fuming Chamber 110V AC

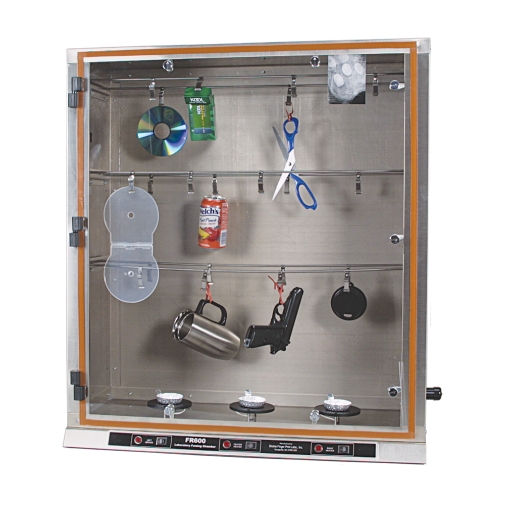

The FR600 Laboratory Fuming Chamber was specifically designed to handle large volumes of physical evidence that are of a non-porous nature. The primary purpose of the chamber is for use with most Cyanoacrylate fuming methods. The chamber features three heating elements used for accelerating development of latent fingerprints when liquid cyanoacrylate compounds are used. The chamber is equipped with an inlet and outlet port, one on either side permitting the use of accessories such as the CYANOWAND™ and connection to the DeFumigator™ Cyanoacrylate Fume Extractor. The inlet port also allows connection of the PUM100 Portable Humidifier when adding moisture is required. The acrylic chamber door permits an unrestricted view of the contents during fuming procedures.Latent prints developed using cyanoacrylate are the result of the fumes from the compound combining with the moisture content of a latent print. When the fumes come into contact with this moisture, the process of polymerization takes place. This results in a hard, white residue conforming to the ridges of the latent print. Use of a fuming control card is recommended to aid in the determination of development time. A 220V AC version is available by ordering No. FR600220.


The FR600 is supplied complete with:

1 - CNA106 Omega-Print Disposable Fuming Trays, 25

1 - CNA104 Omega-Print Dispersal Pads, 100

1 - CNA103 Omega-Print Fingerprint Developer, 16 oz.

2 - CNA20001 FINDER Cyanoacrylate packets

1 - CNA110 Cyano-Bloc Pre/Post-treatment Pads, 5

1 - FR201 Fuming Control cards, Pad of 50

1 - FR1002 Fuming Platform, Wire Mesh

6 - Evidence Support Rods

24 - FR1006 Evidence Clips

Product Restrictions

  • HAZMAT Shipping Charge
