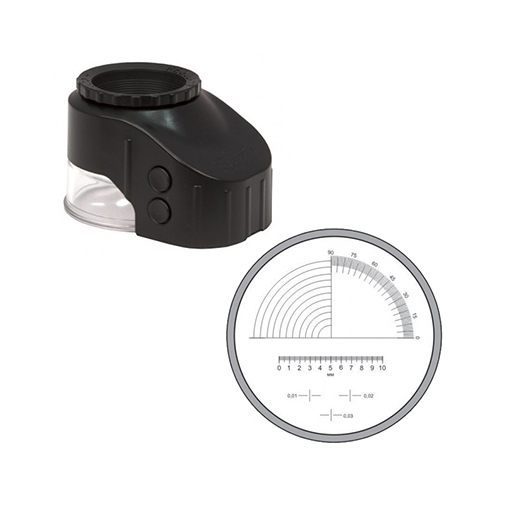

Fixed Focus 10X Magnifier with Diopter Adjustment, 2 White Light Sources and Measuring Disc

$88.99
SKU
FM1004M

Compact Magnifier for express examination of small size security features or details. Authenticity control of fingerprints, banknotes, documents, and other security papers. Includes a measuring disc for examination of minute forensic evidence.

Applications:

  • Law enforcement agencies
  • Forensic laboratories
  • Banks
  • Medical establishments
  • Notary offices



Features:

  • 10X Magnification
  • Coated Optics
  • 2 built-in light sources (incident and oblique) for examination in insufficient lighting conditions
  • 24-30 hours of continuous operation easy-to-replace battery dimensions (mm) 72×50×50



Measuring disc specifications:

  • Linear scale, mm — 0-10
  • Linear scale division, mm — 0,1
  • Angular scale — 0–90°
  • Angular scale division — 1°
  • Radial scale division, mm — 1
  • Reference lines width, mm — 0,1; 0,2; 0,3

Compact Magnifier for express examination of small size security features or details. Authenticity control of fingerprints, banknotes, documents, and other security papers.

Applications:

  • Law enforcement agencies
  • Forensic laboratories
  • Banks
  • Medical establishments
  • Notary offices

Features:

  • 10X Magnification
  • Coated Optics
  • 2 built-in light sources (incident and oblique) for examination in insufficient lighting conditions
  • 24-30 hours of continuous operation
  • Unit runs on a single type 4LR44, 6V battery (included)

Measuring disc specifications:

  • Linear scale, mm — 0-10
  • Linear scale division, mm — 0,1
  • Angular scale — 0–90°
  • Angular scale division — 1°
  • Radial scale division, mm — 1
  • Reference lines width, mm — 0,1; 0,2; 0,3
