Our Ductless Fuming Chambers, Drying Cabinets and Workstations utilize in-unit filters that must be changed periodically to ensure that the unit is working properly, and that the operator is fully protected from potentially hazardous particulate, toxic fumes, and noxious odors.
These ductless units utilize one or more of the following filters:

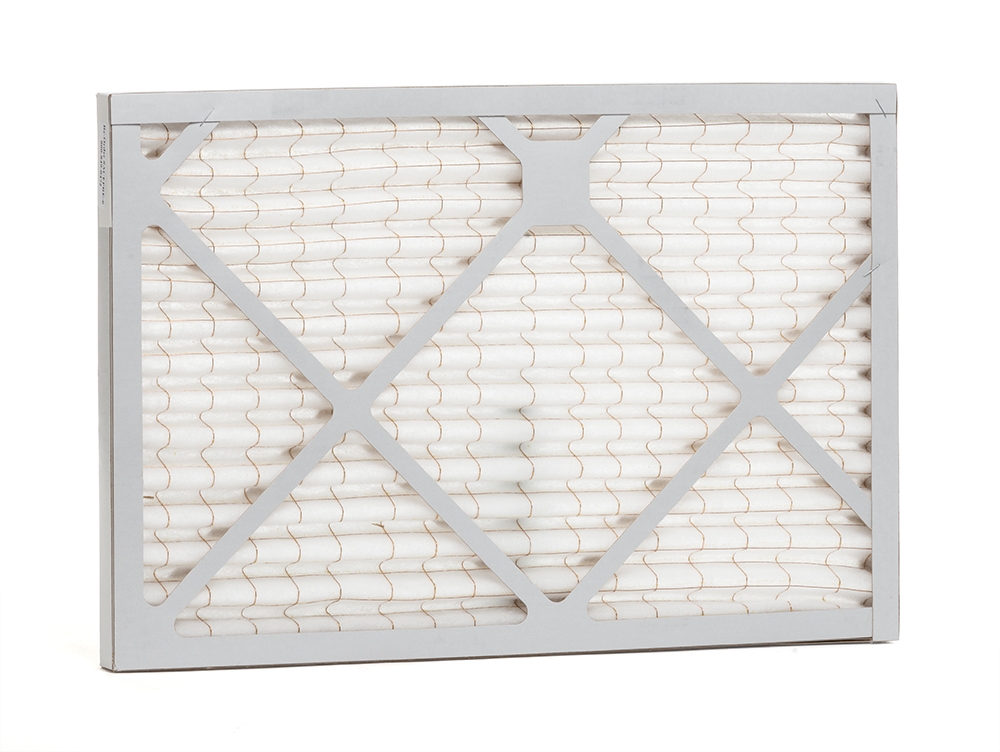

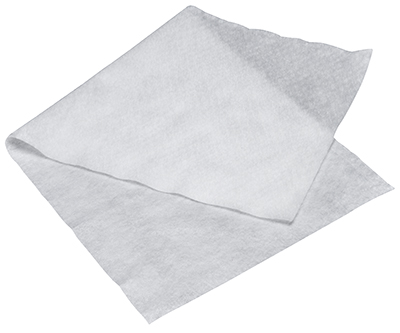

Prefilters are made of electrostatically charged fiber and are designed to trap larger particulate. These filters should be replaced every 1 to 3 months for optimal operation (depending on usage).

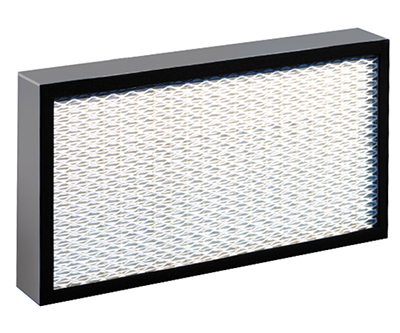

HEPA Filters trap smaller particulate (99.997% efficiency at 0.3 microns) and should be replaced every 18 to 24 months for optimal operation (depending on usage).

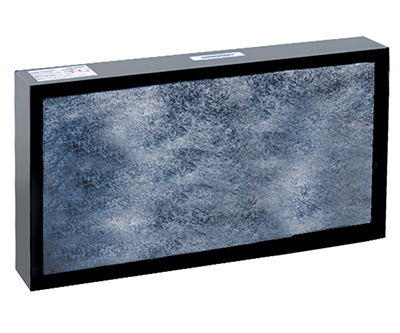

Carbon Filters protect the operator from toxic chemical fumes, vapors, and noxious odors. These filters should be replaced every 18 to 24 months for optimal operation (depending on usage).
See below to match your ductless unit with the filter(s) necessary for safe, efficient operation.
DrySafe Drying Cabinets
All DrySafe units use the same Prefilters, HEPA Filters & Carbon Filters.
- Particlulate Prefilters: No. ACFPRE
- HEPA Filter: No. ACFHEPA
- Bonded Carbon-Activated Filter: No. ACF300
CyanoSafe Cyanoacrylate Fuming Chambers
mini CyanoSafe (No. CAS24)
The mini CyanoSafe uses only Hybrid Bonded Carbon filtration.
- Hybrid Bonded Carbon Filter for mini CyanoSafe: No. ACF10018H
Benchtop & Freestanding CyanoSafe Units
These fuming chambers all use the same Prefilters and Hybrid Bonded Carbon Filters.
- Particulate Prefilters: No. ACFPRE
- Hybrid Bonded Carbon Filter: No. ACF100H
Latent Fingerprint Dusting Stations
DownDraft Dusting Stations use only HEPA filtration (different unit widths require unique filters).
- Downdraft Dusting Station, 24" (No. DDS24)
These units use No. ACFHEPA8 - Downdraft Dusting Station, 36" (No. DDS36)
These units use No. ACFHEPA18 - Downdraft Dusting Station, 48" (No. DDS48)
These units use No. ACFHEPA22
Our standard Latent Print Dusting Stations use both Prefilters and HEPA Filters (different unit widths require unique filters).
- Latent Print Dusting Workstation, 32" (No. DS100A)
These units use No. ACFPRE and No. ACFHEPA - Latent Print Dusting Workstation, 48" (No. DS200A)
These units use No. ACFPRE4 and No. ACFHEPA18
Basic Carbon Forensic Workstations
These units use Prefilters and Bonded Carbon Filters (different unit widths require unique filters).
- Basic Carbon Forensic Workstation, 32" (No. AC632C)
These units use No. ACFPRE and No. ACF100 - Basic Carbon Forensic Workstation, 48" (No. AC648C)
These units use No. ACFPRE4 (2 each) and No. ACF10018 (2 of each required for operation)
Basic HEPA Forensic Workstations
These units use Prefilters and HEPA Filters (different unit widths require unique filters).
- Basic HEPA Forensic Workstation, 32" (No. AC632H)
These units use No. ACFPRE and No. ACFHEPA - Basic HEPA Forensic Workstation, 48" (No. AC648H)
These units use No. ACFPRE4 and No. ACFHEPA18 (2 of each required for operation)
Advanced Forensic Workstations
These units use Prefilters, HEPA Filters and Carbon Filters (different unit widths require unique filters).
- Advanced Forensic Worksations, 32" (No. AC6200A)
These units use No. ACFPRE1, No. ACFHEPA, and No. ACF100 - Advanced Forensic Workstation, 48"
These units use No. ACFPRE4, No. ACFHEPA18 and No. ACF10018 (2 of each required for operation)
PCR Workstations
Our PCR Workstations come as "Dead Air Boxes" with no filtration—only shortwave UV lighting, or with Prefilters & HEPA Filters as well as shortwave UV lighting. Filtration varies depending on unit width.
- PCR Workstation, 32"
These units use No. ACFPRE (1 each) and No. ACFHEPA (1 each) - PCR Workstation, 48"
These units use No. ACFPRE4 (2 each) and No. ACFHEPA18 (2 each)
Identification Workstations
These units all use the same Prefilters, HEPA Filters and Bonded Carbon Filters.
- Patriculate Prefilters: No. ACFPRE2
- HEPA Filter: No. ACFHEPA
- Bonded Carbon Filter: No. ACF100
NARKsafe™ Illicit Substance Workstations
These units all use multiple sets of the same Prefilters, HEPA Filters and Bonded Carbon Filters (# needed for operation varies by unit width)
- Particulate Prefilter: No. ACFPRE6
- 1st HEPA Filter: No. ACFHEPA18
- 2nd HEPA Filter: No. ACFHEPA
- Bonded Carbon Filter: No. ACF100
NARKsafe™ Workstation, 36" (requires 2 each of the above for operation)
NARKsafe™ Workstation, 48" (requires 3 each of the above for operation)
NARKsafe™ Workstation, 72" (requires 4 each of the above for operation)
